Propulsion Subsystem

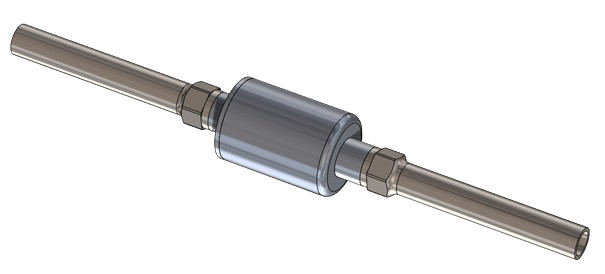

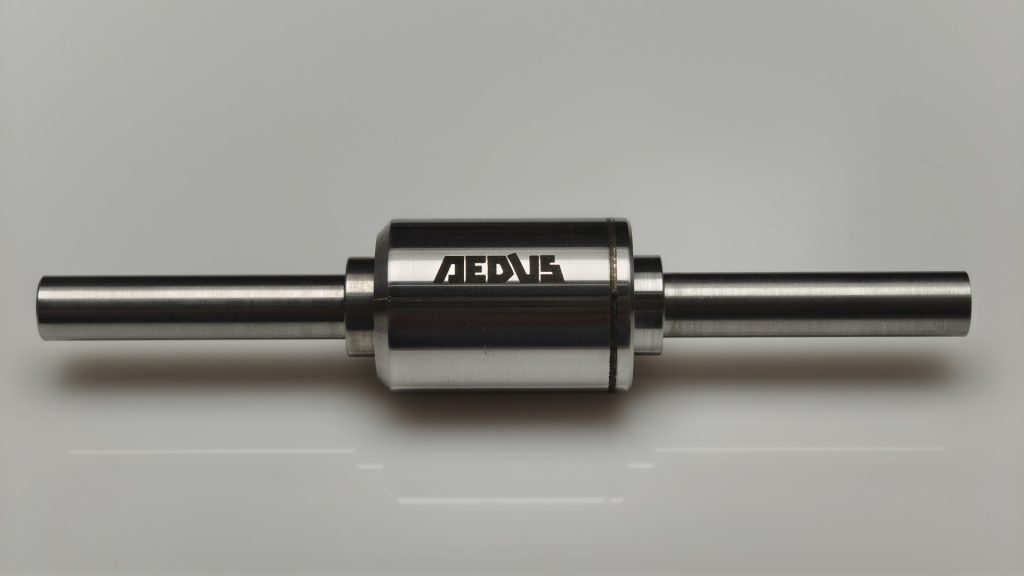

High-Pressure Valve for Electric Propulsion
Aedus develops advanced high-pressure valves for the flow control of noble gases or chemical propellants. Pressures and flow rates may be adjusted to specific customer requirements. Our commitment is to deliver reliable performance with minimal weight and power consumption through European engineering and manufacturing excellence. Application areas: in-space propulsion, main isolation latching valve of electric propellants, miniaturized isolation valve.
Latching Valve Features:
- 2/2 fluid control functionality
- Latching operation
- Electrical open/close actuation
- Bistable latching operation – no holding power required
- Real-time valve status monitoring via telemetry
- High-pressure application with noble gases up to 310 bar operating pressure
- Robust, welded structure or stainless steel
- Integrated filtration
Technical Data:
Mass flow: 500 mg/s mass flow with Krypton
Internal leakage: 5e-5 scc/s GHe
External leakage: 5e-6 scc/s GHe
Power drain (peak): < 30 W
Operating voltage: max. 51 V (DC)
Response time: max. 50 ms
Operating Temperature Range -15 °C .. +75 °C

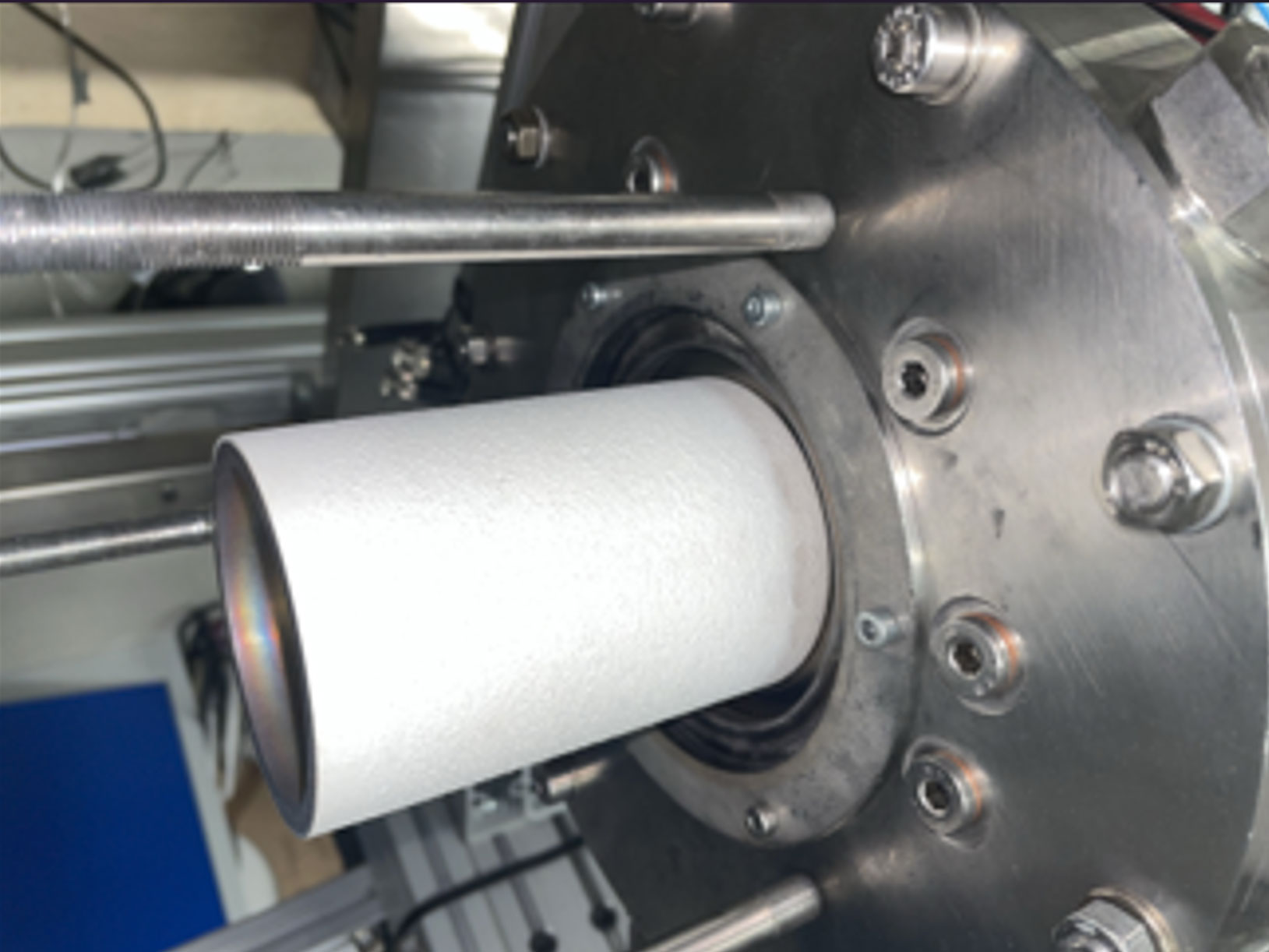

Rotating Detonation Engine (RDE) Development Activities
Advanced combustion chamber technologies are developed in collaboration with partners, covering material selection, thermal modelling, and validation of thermal barrier coatings. These activities focus on improving durability, lifetime, and reusability through innovative coating solutions. Aedus contributes to fuel nozzle design and development, with a focus on efficient GH₂/GO₂ mixing through optimized injector geometries to enhance combustion performance and system efficiency. The company also participates in the development of next generation health monitoring technologies for propulsion and fluid systems, supporting solutions that improve reliability, predictive maintenance, and operational safety for future reusable space propulsion platforms.
